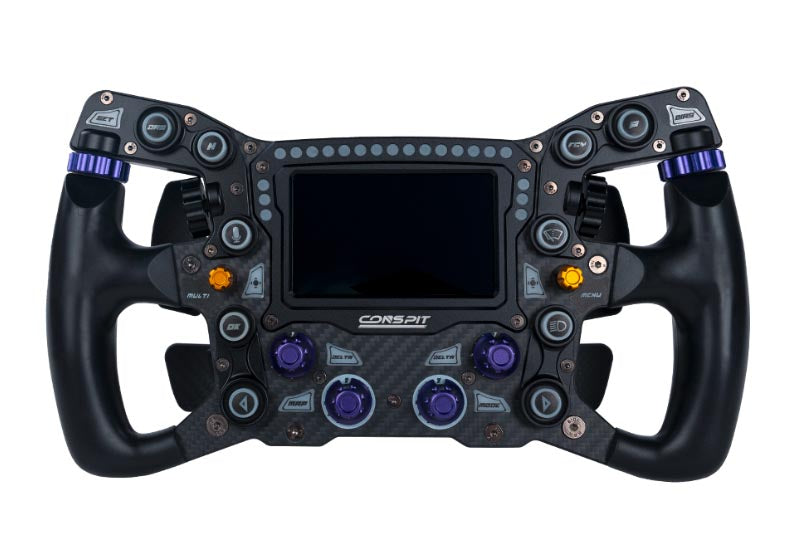

Conspit® MAX01 Formula Wheel

MAX 01 was developed with a focus on competitive driving simulations and is equipped with CONSPIT's proprietary, advanced control features and offers 100% plug-and-play compatibility with SimHub , allowing drivers to unleash their full racing potential.

Comprehensive race data display

Fully adjustable integrated display
Features a high-resolution 4-inch touchscreen display and 21 programmable RGB dash lights.
Fully compatible with SimHub, it offers precise displays and endless possibilities for race data display.
The SimHub Dash, designed by CONSPIT, enables seamless integration of the dashboard pages into CONSPIT's hardware design style.
Constructed with an aluminum alloy dashboard frame, with additional flange parts to protect the screen.

RGB key and function light area
10 RGB key modules with responsive and precise tactile feedback.
8 RGB functional light zones for displaying vehicle status, function information or route/sector data.
The color of all button and function lights, as well as the feedback from the race data telemetry, can be adjusted independently.

Robust and durable overall structure
The front panel is made of 5 mm thick, 100% genuine carbon fiber, paired with a one-piece aluminum alloy housing. The load-bearing components, connection points, and cutouts are all optimized for the mechanical topology and ensure absolute rigidity when using high-torque DD wheels.
Rotary knobs, thumb switches and key surrounds on the control panel are made of metal and convey a high-quality, uncompromising feel.

Extended design of the control components
Innovative thumb-operated button on the back
Inspired by racing design, there are two easily accessible buttons behind the steering wheel that expand the control options in racing.

Open-design thumb rotary encoder
Unlike conventional thumb controllers hidden inside the housing, the purple thumbwheels are designed to be open, allowing the rider to operate them from behind with both the thumb and the index finger, increasing the efficiency of control interaction.
Without the housing, this pair of sensors blends seamlessly into the profile of the steering wheel, giving it a unique aesthetic touch.

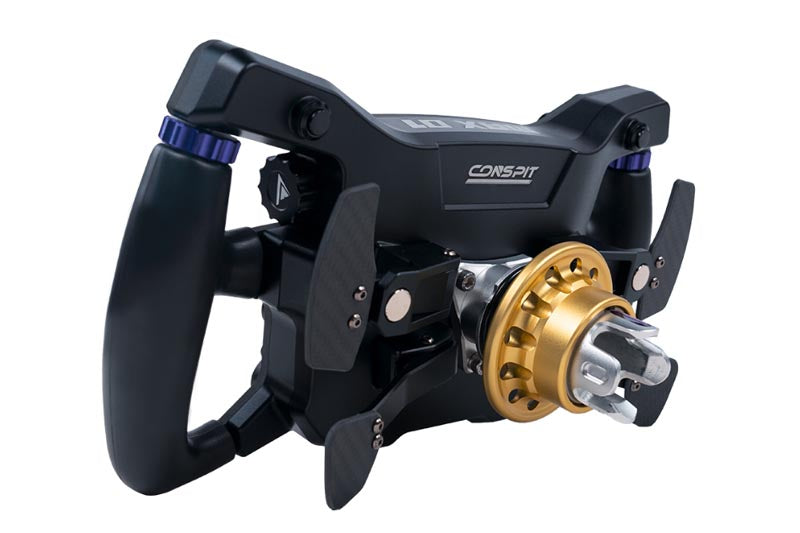

Paddle shifters - an interactive sensation
The paddle shifter modules were carefully designed to achieve the perfect balance between quiet operation and tactile feedback.
Standard dual-clutch paddle shifters with a fixed grip, allowing the driver safe start control every time the engine starts.

Optimal grip for the 310 mm grip-to-grip distance
Ergonomic design for the 310 mm grip distance, ensuring a comfortable and secure grip for long-distance rides.
The handles are made of highly durable TPU material, the surfaces of which are formed from precision molds to prevent peeling or fading.

Quick-Con adapter and independent USB port
Standard 70mm PCD adapter, compatible with all brand wheelbases.
Military-grade quick connectors on the adapter ensure stable connections.
Includes a detachable, easily removable coiled cable with direct USB connection.

Conspit Link 2.0 Extended Control Functions
Rapid calibration of paddle shifters/clutch paddles and advanced control functions can be performed via Conspit Link 2.0 without the need for third-party software:
Dual-mode rotary knob: The rotary knob can be set as a rotary switch or encoder.
Programmable Rotary Encoder (P-ENC): The rotary knob's switching positions can change the button assignments of the two purple thumb encoders, allowing multiple vehicle-internal settings to be controlled via the same thumb encoder without additional physical encoders. For example, when the rotary knob is in position 2, the thumb encoder can be assigned to the brake preload adjustment; in position 3, the same thumb encoder can control the traction control (TC) level.
Rotatable Macro: One of the lower rotary knobs can be set to control the position combinations of the two upper ones, enabling quick switching to preset vehicle control maps, e.g., a quick simultaneous change of the operating mode and throttle shape.
