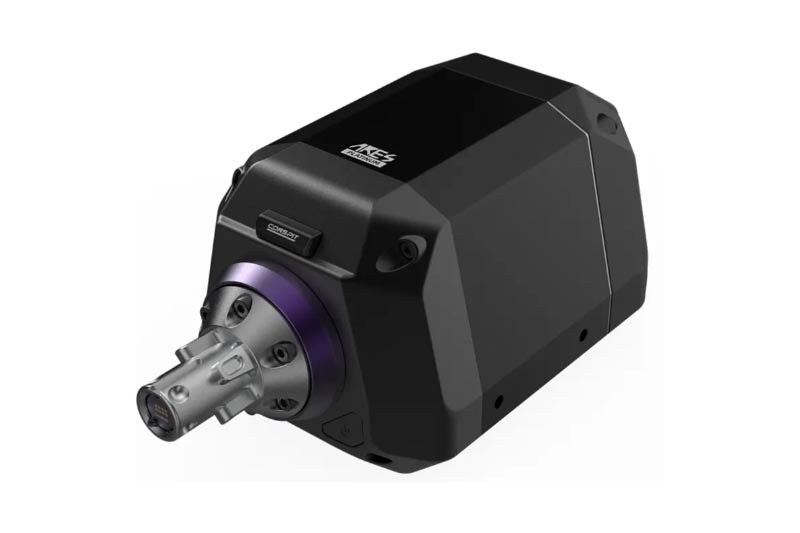

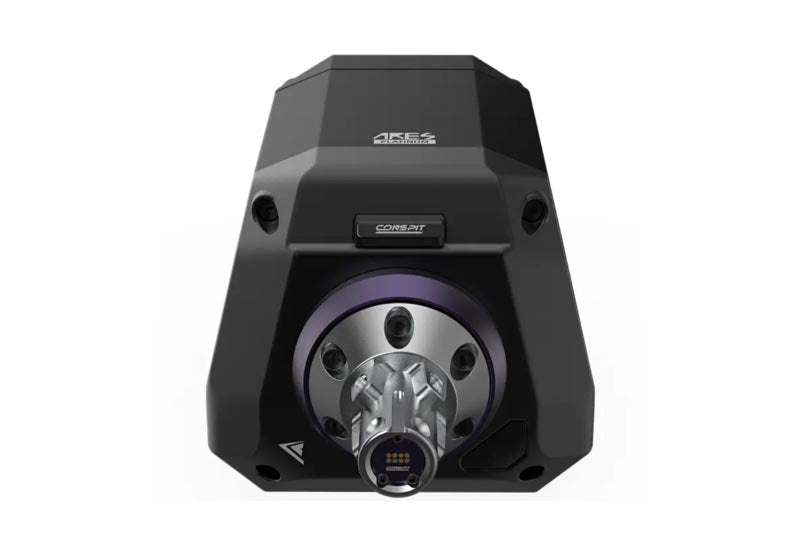

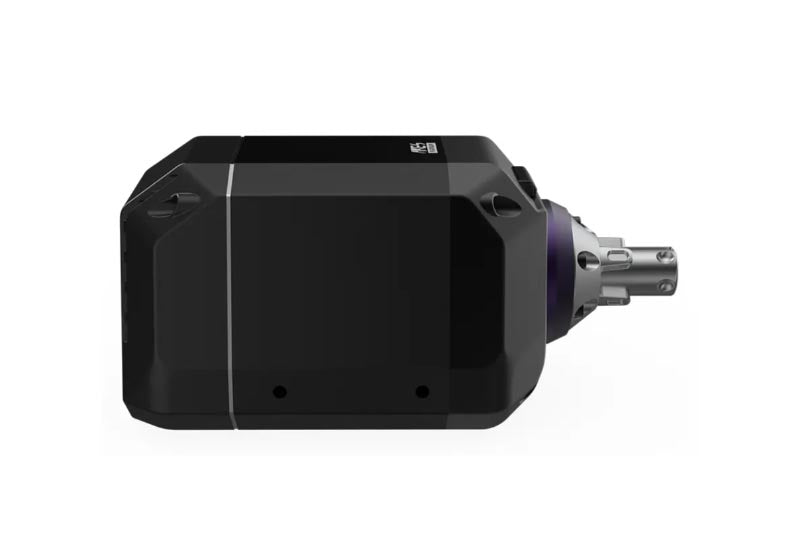

CONSPIT - Ares Platinum - now with 20Nm!
The CONSPIT Ares Series Sim-racing Wheelbase offers an unparalleled competitive advantage for sim racers, delivering an incredibly realistic driving experience. With its advanced force feedback system and innovative technology, this base precisely captures every movement. Designed to meet the unique demands of sim racing, it provides superior control, performance, and stability.
Superior performance
- Military-grade signal transmission: A slip ring with 20 million revolutions per minute ensures seamless and interference-free signal transmission and avoids common problems such as electromagnetic interference.
- High-speed processors: The Ares series is equipped with asymmetric dual processors (170MHz + 168MHz) that ensure fast, efficient and stable calculations during gameplay.
- Precise steering: High-precision optical encoders offer an angular resolution of less than 0.01°, paired with 23-bit resolution for ultimate accuracy in capturing control inputs.
Masterful control
- Advanced motor control: The motor system is characterized by exceptional stability, efficiency and precision, ensuring smooth torque output with power feedback.
- Impressive torque response: With a torque response of 9.5 Nm/ms, the Ares base displays even the finest details in the high-frequency range, ensuring a true-to-life experience.
Professional force feedback algorithm
- Tailor-made force feedback: Developed in collaboration with Open FFBoard, the force feedback system offers a professional simulation of real vehicle dynamics, developed with the help of professional drivers and vehicle dynamics engineers.
Optimized for sim racing
- Custom-designed motors: Unlike competitors who use off-the-shelf servo motors, the Ares series is equipped with a motor that was designed from the ground up for simulation racing, optimizing key parameters such as torque ripple, response, and cogging torque for smoother, more precise feedback.
- Dual skew-pole design: The dual skew-pole design of the stator and rotor reduces torque ripple, vibration and noise, resulting in smoother driving performance and excellent NVH (Noise, Vibration, and Harshness) performance.
Ultra-high torque density
- Compact powerhouse: Thanks to cores with high magnetic permeability, powerful NdFeB magnets, and optimized air gap ratios, the Ares motor delivers immense power in a compact form. This results in high torque density and strong performance.
- Minimized torque ripple: The electromagnetic design of the motor, which features a high slot-pole matching and a precise magnetic circuit architecture, ensures extremely smooth steering behavior with minimal torque ripple.
- Specifications of the Ares Platinum 18Nm Wheelbase
Specifications of the Ares Platinum 18Nm Wheelbase
-
-
Model : Ares Platinum 18Nm Wheelbase
-
Dimensions : 134 x 150 x 287 mm
-
Net Weight : 7.9 kg
-
Maximum Torque : 18 Nm
-
Encoders : High-precision optical encoders
-
Motor : Dual Skewed Pole Design
-
Resolution : 23-bit
-
Quick Release : CONSPIT ball-type single locking (CDP) quick release
-
Mounting Holes : M6 x 4 (bottom), M8 x 4 (sides)
-
Platform : PC (Windows)
-
E-Stop : Optional
-
Connection : USB
-
Cable : USB 3.0
-
Software : CONSPIT Link 2.0
