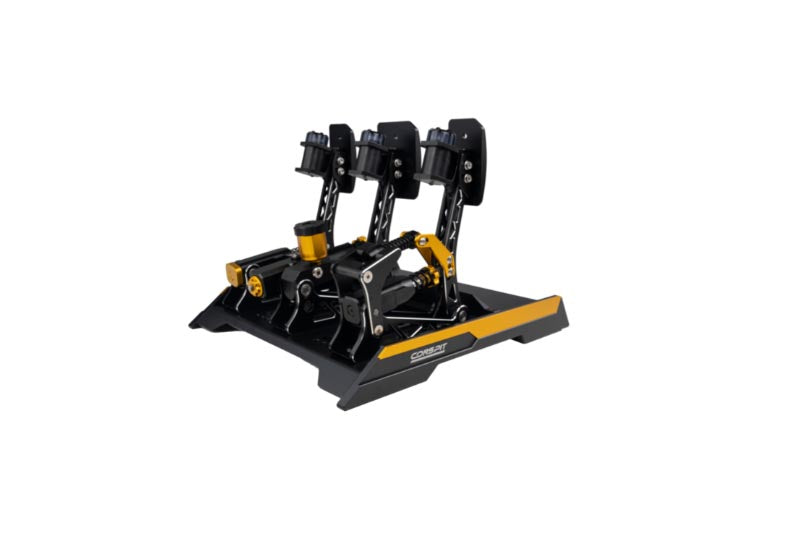

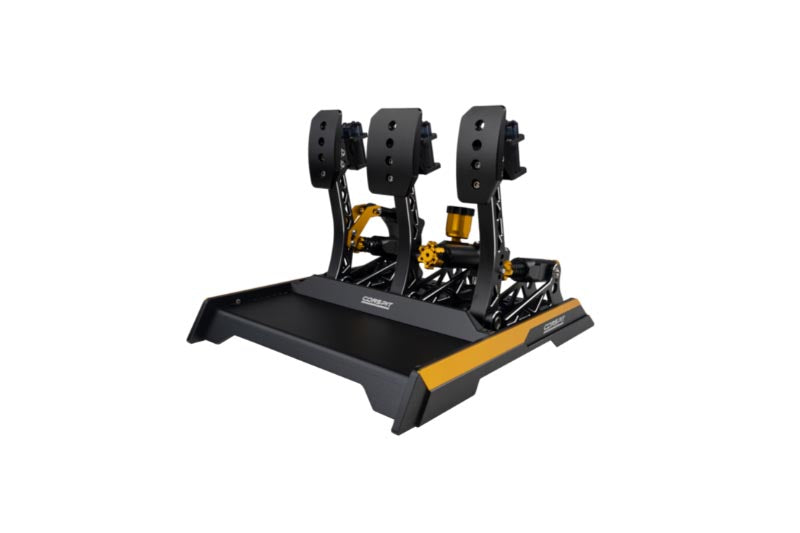

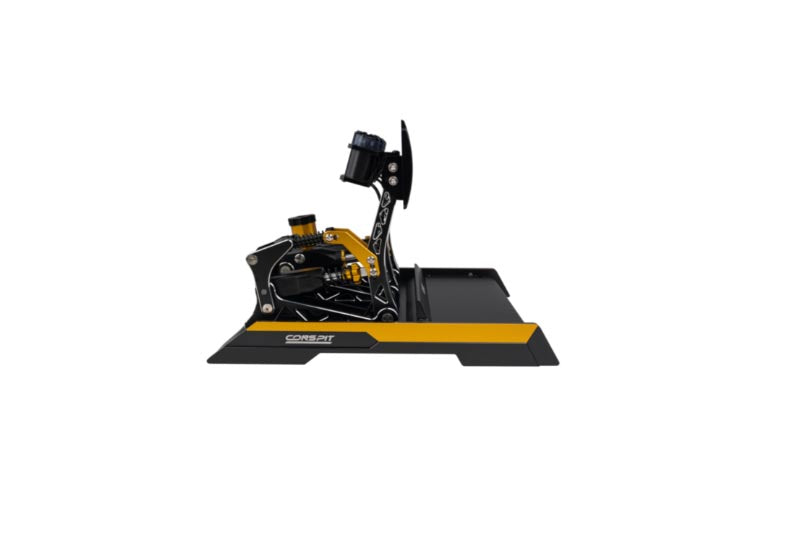

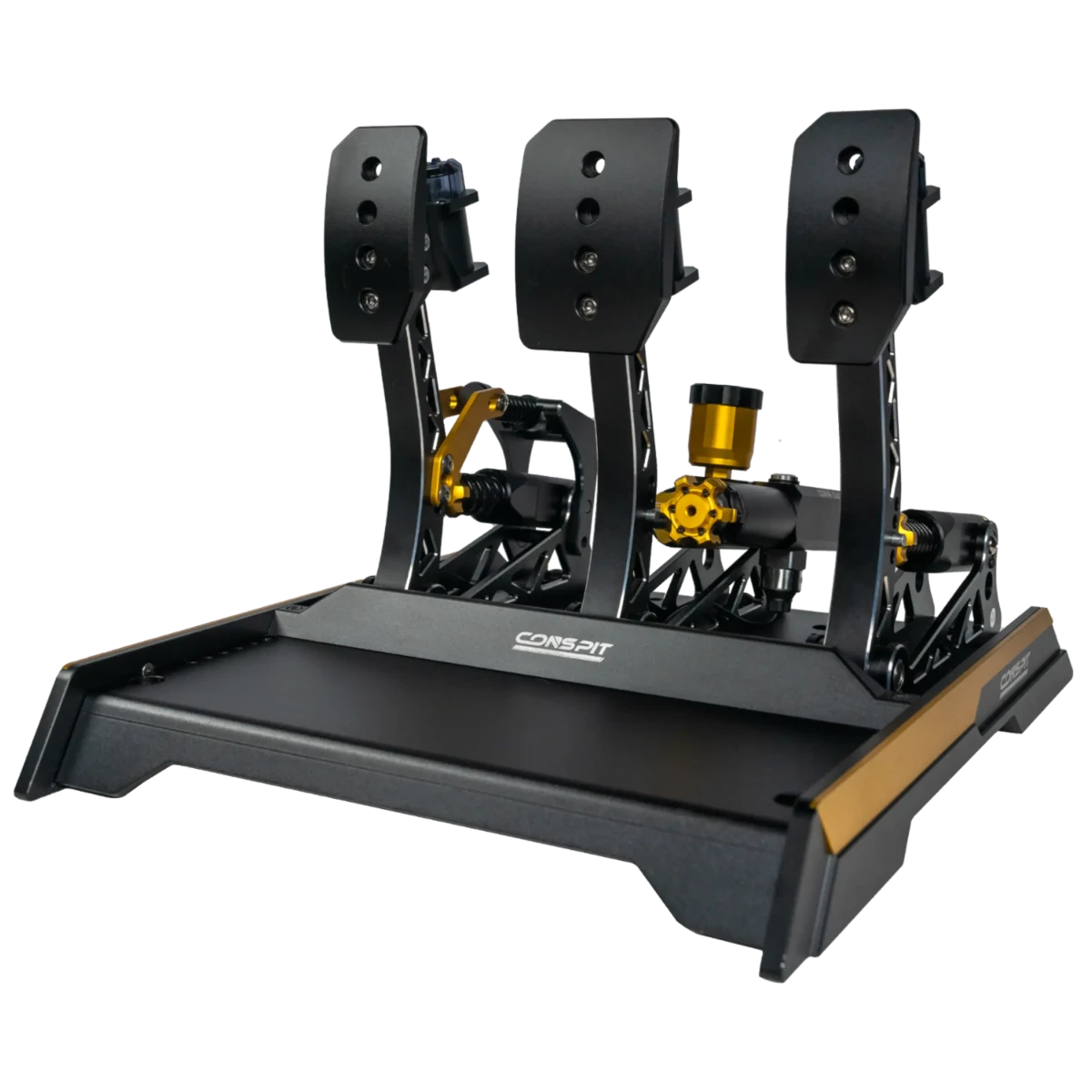

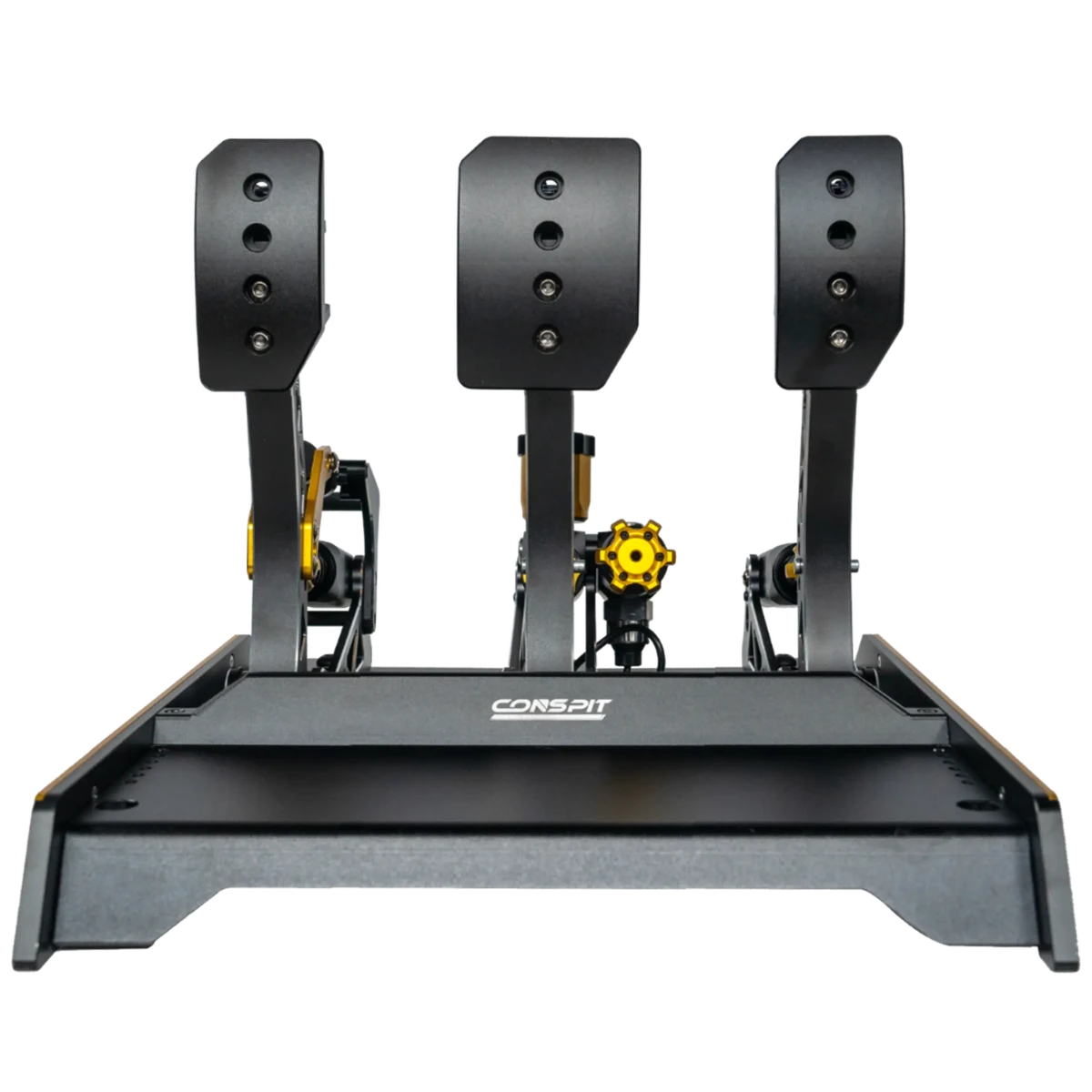

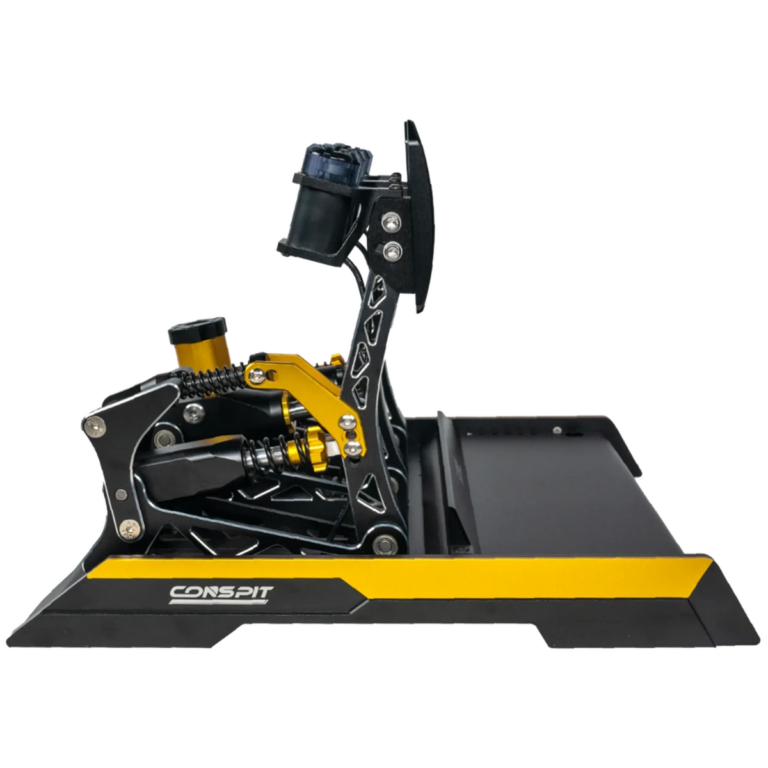

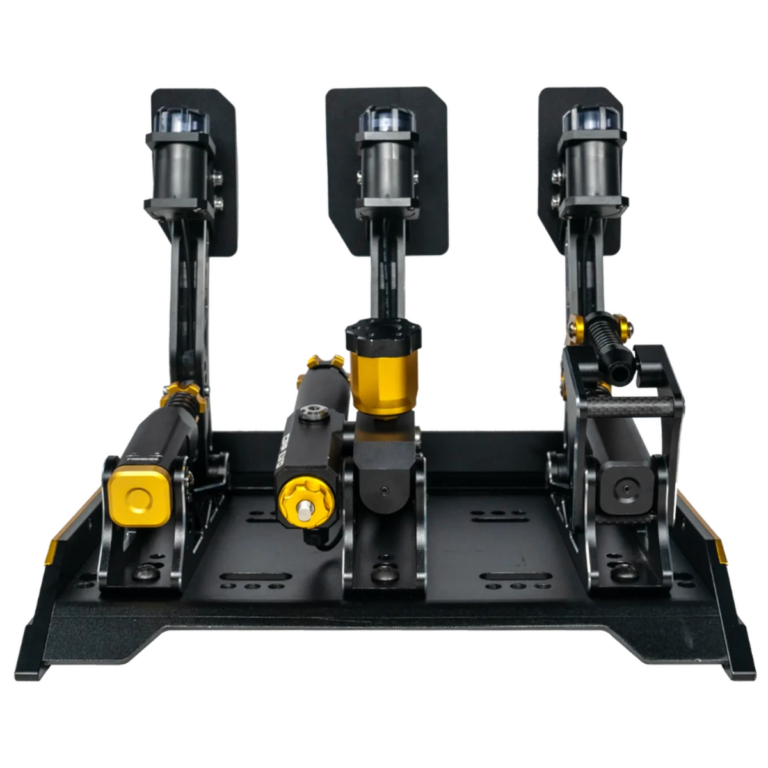

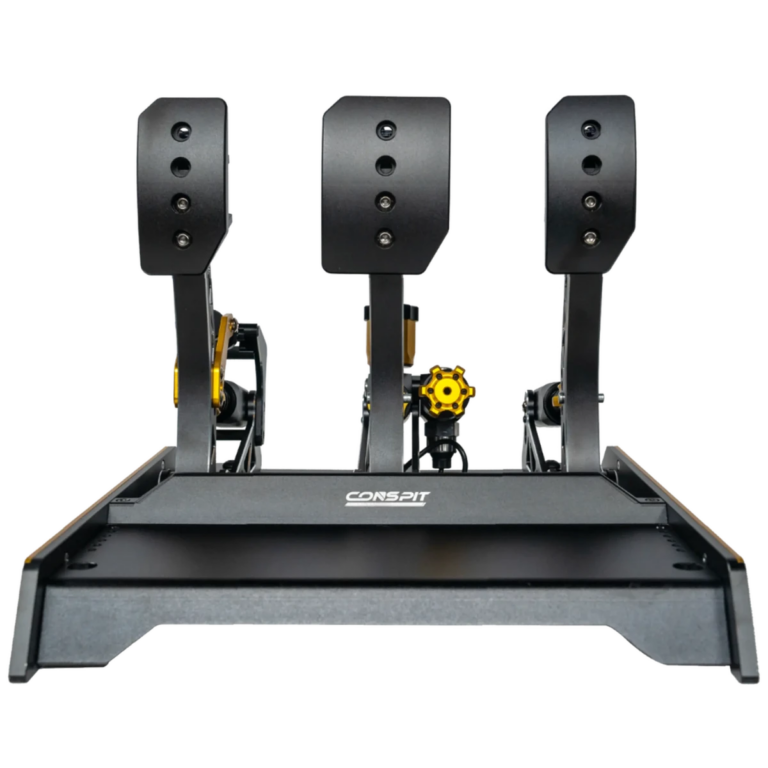

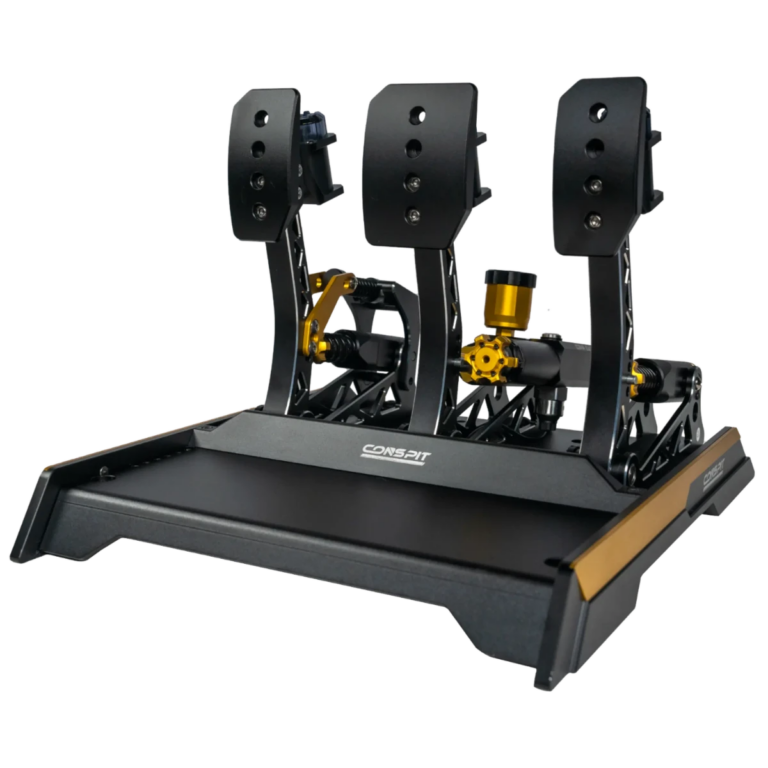

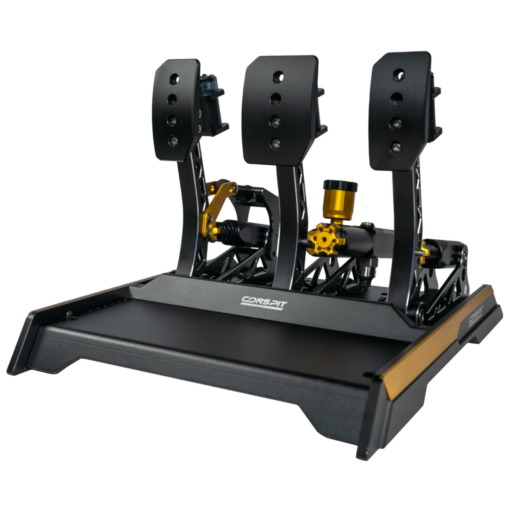

Conspit CPP EVO 3 pedal set

Product description
CONSPIT CPP EVO Hydraulic Pedals
Conspit 2.0 Gen. two-stage hydraulic system

20MPa high-precision hydraulic sensor (=200kg)

Gradual adjustment of braking force with hydraulic fine adjustment of preload

Independent travel and force adjustment for the throttle valve

M-DVF vibration feedback - compatible with iRacing and SimHub

Custom mapping curve

All-metal construction
The CONSPIT second generation hydraulic system with two-stage cylinders

The design of the two-stage hydraulic cylinders provides a two-stage pedal feel, simulating the actual operating state of the wheel cylinder pistons in a real car's braking system for a more precise braking experience. The preload force of the front and rear stages can be adjusted independently, allowing the driver to customize and fine-tune the system to their individual preferences.

When the brake pedal is pressed, hydraulic fluid flows through the damping ports into the elastomer cylinder and pushes the piston. Initially, the softer elastomer of the front stage is compressed, resulting in a softer pedal feel. As the piston continues to move, both the front and rear elastomers are compressed simultaneously, leading to a firmer pedal feel in the later stages.

High-precision 20MPa hydraulic sensor
The second-generation CONSPIT hydraulic system is equipped with a high-precision 20 MPa hydraulic sensor capable of detecting even the smallest changes in brake pressure and translating them into subtle adjustments to braking performance. The sensor's long range ensures that professional sim racers can fully utilize this system to achieve the most realistic racing dynamics possible.

CONSPIT's extensive experience with hydraulic brake systems for sim racing is fully evident here. The second-generation hydraulic system features a completely redesigned internal layout with improved sealing and durability, as well as carefully selected materials. These improvements result in superior high-pressure resistance, ensuring consistent performance even in the most demanding racing environments.

Exceptional adjustability
The CPP-Evo was developed from the perspective of professional drivers and expands the limits of adjustability in the racing simulator field.

Ergonomic setting
The distance between the pedals, the angle of the surface, the height of the plate and the position of the footrest are all adjustable, ensuring exceptional comfort whether you are braking hard or performing precise maneuvers.

Adjusting the pedal feel
Gas: four-stage quick adjustment of pedal force, decoupled adjustment of pedal travel and spring preload.
Brake: four-stage quick adjustment of pedal force, independent adjustment of spring preload for the front and rear stages.
Clutch: Adjustable spring preload with four settings to adjust the bite point feel.

Fully CNC racing grade aluminum alloy
CNC machined from a 6061-T6 aluminum alloy, with a fine sandblasted and anodized surface that provides a durable and robust coating.

The M-DVF vibration module is standard.

Equipped as standard with the M-DVF vibration feedback module, which provides important information that is often missing in racing simulations.
Supports iRacing Native Vibration Feedback
SimHub supports shaking motors
