More than just flags – the 4″ TFT display brings dynamism to your SimRig.

Product Overview

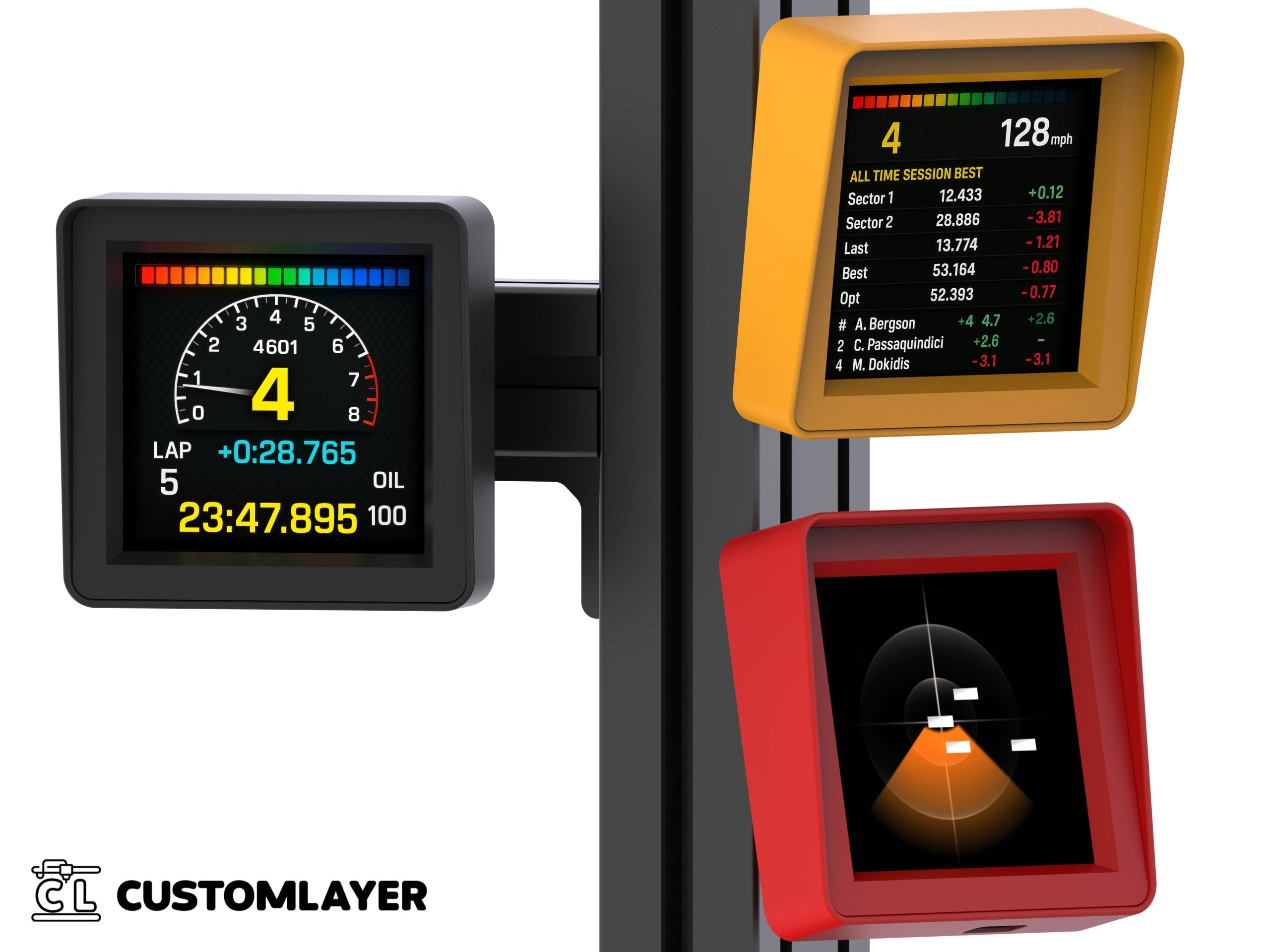

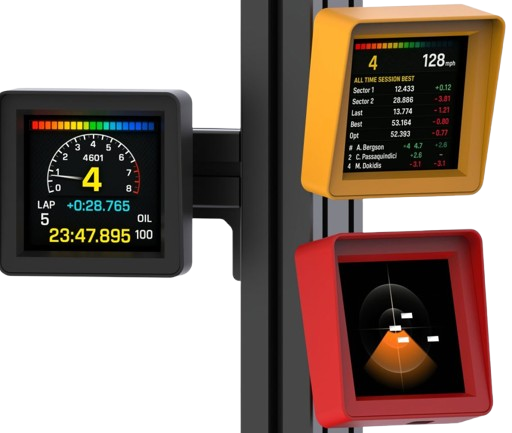

The CustomLayer Sim Flag is a display device specially developed for sim racing, bringing visual race information such as flag conditions directly into the driver's field of vision. With the integrated 4″ TFT display, featuring 480×480 pixels and smooth 60 FPS rendering, various race signals – such as yellow, blue, or black – can be clearly and distinctly shown. This visual support helps drivers react quickly and in compliance with rules to track situations.

The display is housed in a functional casing that evokes the design of classic pit box elements. An integrated hood protects the display from glare from ambient light and improves readability even in changing light conditions. The design was deliberately chosen to allow seamless integration into various sim racing setups – whether screwed in place, mounted, or freestanding.

Connection is made via USB-C, allowing for easy device setup. Via the SimHub software, the display is automatically recognized and can be used immediately. Users also receive a suitable display profile that can be customized as desired. This allows users to define which race information is displayed – such as flags, gear, track map, or radar. Thus, the Sim Flag offers a practical addition for anyone looking to enhance their setup with a clear, visual race display.

Technical Specifications

The SimFlag from CustomLayer was developed to clearly and reliably display relevant race information. It is based on proven LED matrix technology and can be easily integrated into various SimRacing setups. Below you will find an overview of the most important features:

Housing shape

The compact housing is based on a classic pit box style with an integrated canopy. This protects the LED matrix and improves readability in changing lighting conditions.

Mounting options

The display can be flexibly mounted - either directly on the SimRig, on the wall, or with a separately available stand or bracket for wheelstands.

TFT Panel

Instead of an LED matrix, a 4″ TFT display with touch function is used. The panel offers a resolution of 480×480 pixels at a smooth 60 FPS and enables a clear, high-contrast display of content such as flag signals, gear indicators, or telemetry data.

Individual Display

All displayed content such as flags, gear indicator or other SimHub data can be configured as desired. This allows each user to decide for themselves which information should be displayed and how.

Connection

Power and data connection via a USB-C port. A 3-meter cable is included so the device can be placed flexibly.

Software compatibility

The display is fully compatible with SimHub. This gives you access to numerous functions and layouts - from simple flag signals to more complex displays such as telemetry, radar, or track maps.

Functionality and Applications

The SimRacing display module with LED matrix was developed to clearly and reliably display important track signals such as flag statuses. Through visual representation, users always get a quick overview of race situations such as yellow phases, overtaking instructions, or pit signals – directly in their field of vision and without additional screens.

This solution is suitable for a wide range of users – from beginners to experienced sim racing drivers. The display helps to better adhere to track rules, avoid penalties, and react faster in critical moments – regardless of which simulation game is used.

Thanks to its modular design, the device can be flexibly integrated into various SimRigs. It is suitable for use in private racing rooms as well as for more professional environments such as sim racing studios or training stations. Power supply and control are conveniently handled via USB in combination with the proven SimHub software, which offers broad compatibility with common simulation titles.

Installation Guide

The installation of the LED flag display is simple and can be performed by most users without technical knowledge. Here is a step-by-step guide to help you through the process:

Positioning: Choose a suitable location on your SimRig or another preferred spot. Ideally, the display should be easily visible during the race without obstructing your field of view.
Mounting: Mount the flag display bracket using the optionally included mounting material to your SimRig or chosen location. Ensure the bracket is securely fastened to minimize vibrations during the race.
Establishing Connection: Connect the device to your PC or racing console using the supplied USB-C cable. Make sure the cable is securely connected and cannot be accidentally unplugged during operation.
Software Setup: After installing and starting SimHub, the Sim Flag display will be automatically recognized by the software as soon as it is connected to your PC via USB-C. Check in SimHub that the device has been correctly recognized. Download the file with the current LED profile, which is specially configured for your Sim Flag. Import this profile into SimHub to ensure that all displays function correctly and are optimally tailored to your needs. Follow the instructions in SimHub to import and customize the profile so that your Sim Flag displays exactly the information you need.

https://discord.com/channels/1260136994894381086/1419749075921670264/1446526800032305353
Test Run: Once everything is connected and set up, perform a test run to ensure that the displays are working correctly and are clearly visible. Adjust the position or settings as needed.

Material: PLA

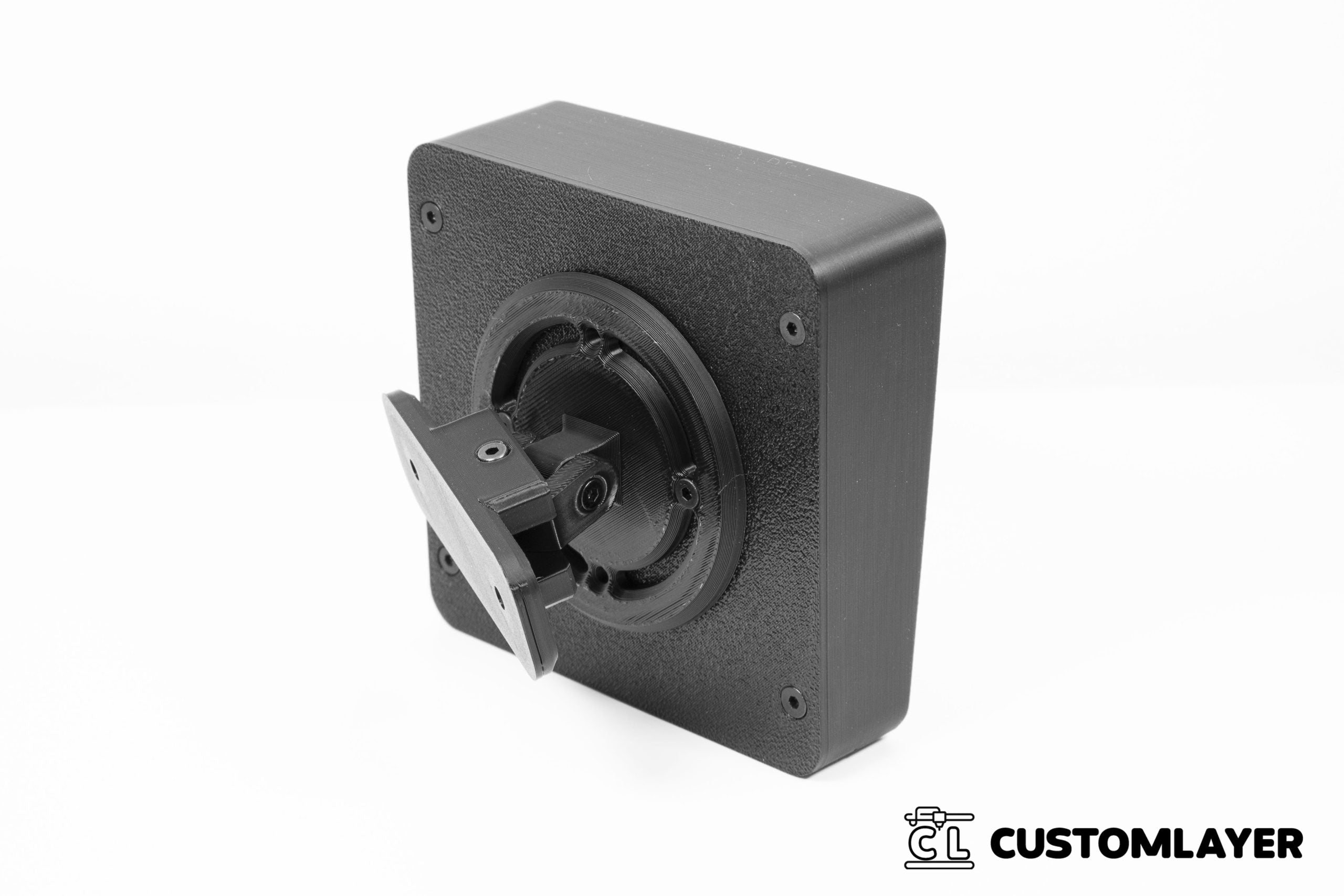

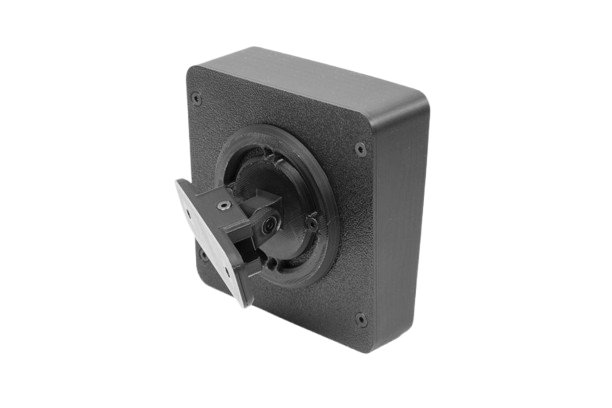

Mounting: M3 thread on the back, included bracket (45mm spacing)
Scope of delivery: 1x SimFlag Display, 1x tilt and swivel bracket, 1x 3M USB-C cable
