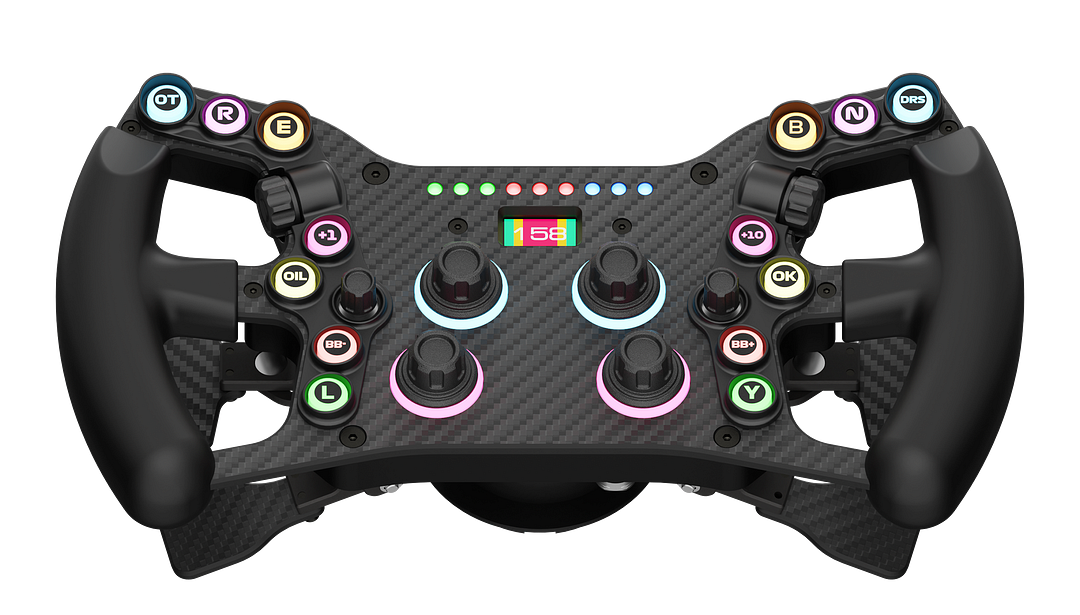

LEOXZ XGT Pro 4 paddles with QR2

FEATURE

1. The 295mm long polyurethane handle, manufactured with high-precision molds, has a special coating on the surface and its fine texture meets different riding needs.

2. The back panel and shift paddles are machined using CNC technology and coated with black anodizing for optimal appearance and lasting durability.

3. The front panel and the shift paddles are made of 4 mm thick 3K carbon fiber with a high-quality textured coating.

4. 9+14+4 RGB LEDs that can be customized via SimHub.

5. 0.96-inch IPS screen with a resolution of 160 x 80 pixels and a refresh rate of 60 fps, whose dashboard can be customized via SimHub.

6. 14 RGB buttons with 500g actuation force, 2 multidirectional joysticks with integrated encoders and 4 push-button encoders, 2 thumb buttons.

7. A standard magnetic shift paddle is included, additional clutch paddles are available as an option.

8. The clutch paddles can be set to bite point mode and axis mode.

9. All paddle shifters use non-contact Hall sensors for long life.

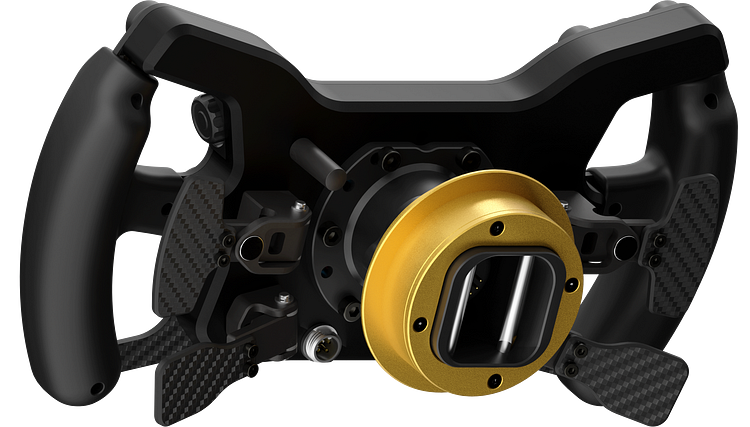

10. QR mounting hole with 70 mm diameter.

11. It can be connected to Leoxz Fanatec QR via QR cable interface to unlock the torque of Fanatec base.

12. Optional powered QR for Fanatec, Simagic and Moza.

13. Fanatec Mode for PS4/5 compatibility on Fanatec bases. Supports access to the Fanatec Tuning menu for adjusting base settings (Leoxz only tested this in Fanatec DD Pro PS Mode).

14. Low latency 2.4GHz wireless (XGT 2.4GHz Link must be purchased separately as a USB receiver).

15. Equipped with an industrial-grade GX12 threaded USB interface and a double-twisted nylon tensile USB cable that has undergone 100,000 cycles of cable twist testing.

COMPATIBLE HARDWARE

Simucube SC1, SC2

Fanatec DD1, DD2, CSW, CSL DD, DD Pro, DD+ (Base torque must be unlocked with Leoxz Fanatec QR)

Simagic Alpha Mini, Alpha, Alpha Ultimate

Moza R12 (The V1 base does not support QR power. The V2 base supports QR functionality, but Leoxz only tested it on the R12, so compatibility with other bases cannot be guaranteed. In this case, a USB cable can be used for power.)

Asetek Direct Drive Wheelbase (Invicta Quick Release Adapter required for the steering wheel)

SOFTWARE

SimHub and SimBridge

SimHub for retrieving telemetry data

SimBridge is used to receive SimHub data and send it to XGT

PACKAGING

Dimensions (LxWxH): 33 cm x 19 cm x 14 cm

Weight: 1.5 kg

INCLUDED IN DELIVERY

XGT Pro steering wheel (Quick Release not included)

USB-GX12 cable

Individual stickers

Nylon tweezers

NOTES

1. The steering wheel can only be used for sim racing.

2. For the USB power port, the maximum voltage is 5 V. For the QR power port, the maximum voltage is 12 V. Exceeding these maximum voltage limits may cause damage to the steering wheel.

3. The free version of Simhub only outputs data at a frame rate of 10 frames per second. To get a frame rate of 60 frames per second, you must purchase an additional license.

4. The SimHub dashboard is only effective when connected via USB. When using a 2.4 GHz wireless connection, only the integrated gear and speed dashboard is available.

5. When using the steering wheel's wireless function, it is recommended to place the wireless receiver within 1 meter of the steering wheel. Otherwise, the wireless speed may be reduced.

6. For bases that may experience significant EMI issues, such as the Fanatec DD1/2, it's best to connect the wheel via an external powered USB hub and a USB isolator. It's also recommended to ensure the DD1/2 has an additional ground wire (https://fanatec.com/us-en/faq/details/id/72).

7. Fanatec compatibility has only been tested with driver and hardware versions prior to May 1, 2024.
