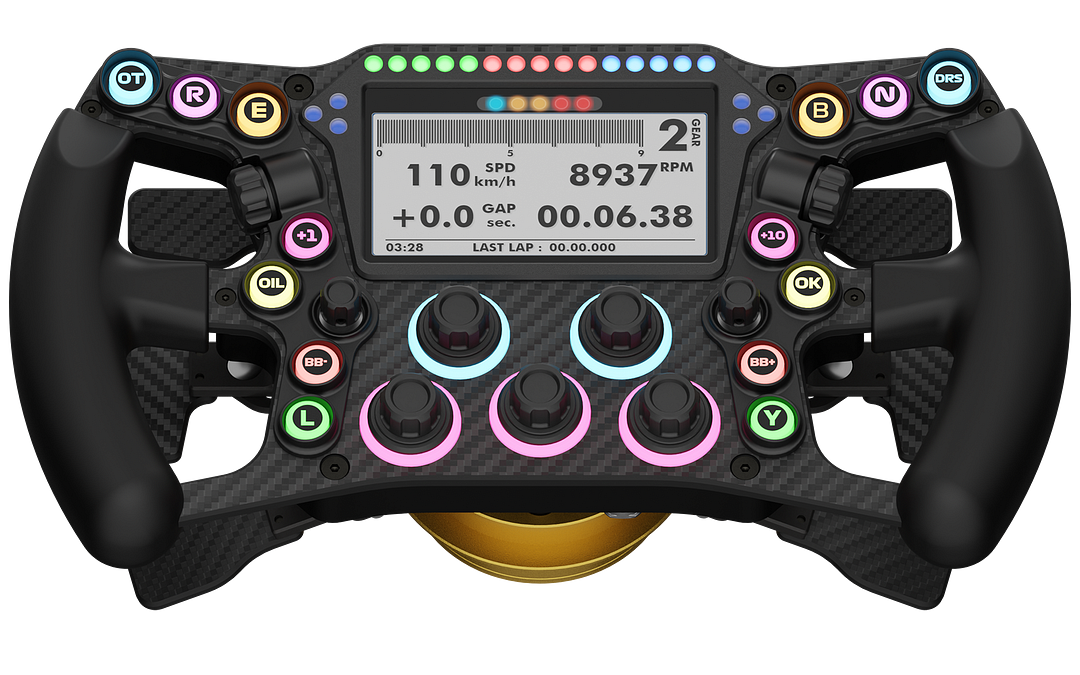

LEOXZ XGT Ultimate 6 Paddles with QR2 + Wireless

FEATURE

1. The 295mm long polyurethane handle, manufactured with high-precision molds, has a special coating on its surface and its fine texture meets different riding needs.

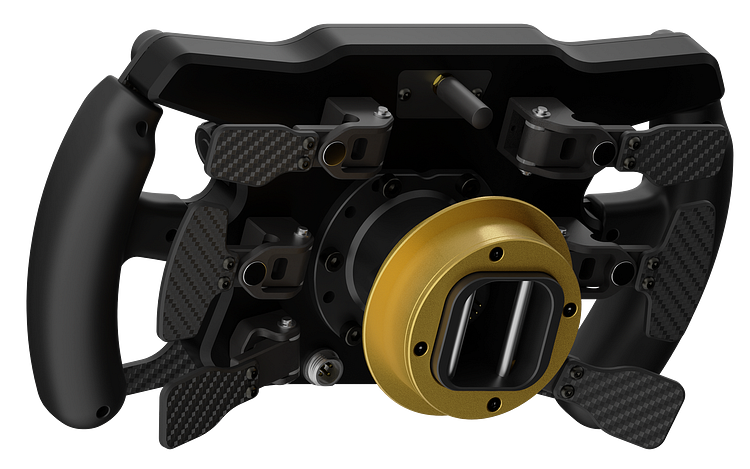

2. The back panel and shift paddles are machined using CNC technology and finished with a black anodized coating for optimal appearance and long-lasting durability.

3. The front panel and the shift paddles are made of 4 mm thick 3K carbon fiber with a high-quality textured coating.

4. 4.3-inch IPS screen with a resolution of 800 x 480 pixels and a refresh rate of 60 fps, whose dashboard can be customized via SimHub.

5. Aluminum alloy screen frame (only for steering wheels shipped on or after March 14, 2025).

6. Low latency 2.4 GHz wireless connection (XGT Wireless Kit must be purchased separately).

7. Compatible with PS4/5 in Fanatec mode (only supports GT7 and F1 24, XGT Wireless Kit needs to be purchased separately).

8. Supports wireless SimHub dashboards.

9. 21+14+5 RGB LEDs that can be customized via SimHub.

10. 14 RGB buttons, 2 multidirectional joysticks with integrated encoder and 5 push-button encoders, 2 thumb buttons.

11. A standard magnetic shift paddle is included, additional clutch paddles and optional paddles are available as accessories.

12. The clutch paddles can be set to bite point mode and axle mode.

13. All paddles use non-contact Hall sensors for long durability.

14. QR mounting hole with 70 mm diameter.

15. It can be connected to Leoxz Fanatec QR via QR cable interface to unlock the torque of Fanatec base.

16. Fanatec Mode for compatibility with PS4/5 on Fanatec bases. Supports access to the Fanatec Tuning menu for adjusting base settings.

17. Equipped with an industrial-grade GX12 threaded USB interface and a double-twisted nylon tensile USB cable that has undergone 100,000 cycles of cable twist testing.

COMPATIBLE HARDWARE

Simucube SC1, SC2

Fanatec DD1, DD2, CSW 2.5 (USB only), CSL DD, DD Pro, DD+ (base torque must be unlocked with Leoxz Fanatec QR)

Simagic Alpha Mini, Alpha, Alpha Ultimate

Moza R12 (The V1 base does not support QR power supply. The V2 base supports QR functionality, but Leoxz has only tested it on the R12, so compatibility with other bases cannot be guaranteed. In this case, a USB cable can be used for power supply.)

Asetek Direct Drive Wheelbase (Installation of the Invicta Quick Release Adapter is required for the steering wheel)

When using a Simagic, Moza, or Fanatec base, the steering wheel can be powered wirelessly via QR code. Since the Simagic base cannot supply high power to the steering wheel, to ensure stable operation of the steering wheel, the button brightness must be reduced (set to 50% to 80%) to minimize the steering wheel's power consumption.

SOFTWARE

SimHub and SimBridge

SimHub for retrieving telemetry data

SimBridge is used to receive SimHub data and send it to XGT.

PACKAGING

Dimensions (LxWxH): 33 cm x 19 cm x 14 cm

Weight: 1.5 kg (QR version 2.0 kg)

INCLUDED IN DELIVERY

XGT Ultimate steering wheel (QR and wireless kit are optional)

USB-GX12 cable

Individual stickers

Nylon tweezers

6 mm high paddle spacers/M3x14 screws (you can choose whether to install these depending on your hand size; 4 pieces for the "Shifter Only" and "Shifter & Clutch" versions, 8 pieces for the "Shifter & Clutch & Option" version)

NOTES

1. The steering wheel can only be used for sim racing.

2. For USB power supply, the maximum voltage is 5 V. For QR power supply, the maximum voltage is 12 V. Exceeding these maximum voltage limits may cause damage to the steering wheel.

3. Due to the large number of RGB LEDs on the steering wheel, its power consumption is very high. Please ensure the steering wheel is connected directly to a USB port on the back of the PC via the GX12 cable to meet the power requirements. If you need to extend the USB connection, be sure to use a USB extension cable or a USB hub with external power. Another option is to reduce the brightness of the RGB lights or turn them off completely.

4. The free version of Simhub only outputs data at a frame rate of 10 frames per second. To get a frame rate of 60 frames per second, you must purchase an additional license.

5. When using the steering wheel's wireless function, it is recommended to place the wireless receiver at a distance of about 1 meter or closer to the steering wheel, and there should be no obstacles between the wireless receiver and the steering wheel. Otherwise, the wireless speed may be reduced. You can check the wireless quality through the steering wheel menu. Green indicates good wireless quality, orange indicates average wireless quality which may cause steering wheel lag, and red indicates poor wireless quality with noticeable steering wheel lag. If your PC is more than 1 meter away from the steering wheel, please try connecting the wireless receiver via a USB hub or USB extension cable and place the USB hub or extension cable closer to the steering wheel.

6. The XGT Ultimate's Wi-Fi function operates at a frequency of 2.4 GHz. Therefore, setting your surrounding Wi-Fi to a frequency of 5 GHz can effectively avoid interference with the XGT Ultimate. If you can only use 2.4 GHz Wi-Fi, please ensure the wireless kit is at least 1.5 meters or more away from the Wi-Fi antenna to reduce interference with the Wi-Fi signal from the Wi-Fi antenna, and try to set the 2.4 GHz Wi-Fi channel to 1-6 if possible.

7. For bases that may experience significant EMI issues, such as the Fanatec DD1/2, it's best to connect the steering wheel via an external powered USB hub and a USB isolator. It's also recommended to ensure the DD1/2 has an additional ground wire (https://fanatec.com/us-en/faq/details/id/72).

8. Fanatec compatibility has only been tested with driver and hardware versions prior to May 1, 2024.

9. The polyurethane handle is coated with a sweat- and dust-resistant layer. It is not recommended to use it with gloves to avoid wear and tear on the coating.
