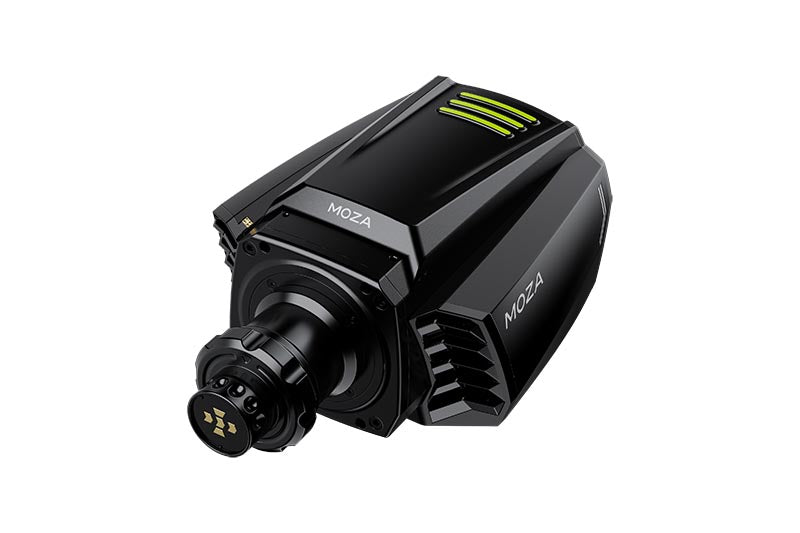

MOZA Racing Wheelbase R16 V2

16 Nm Direct Drive Torque from an Industrial-grade Motor With 16Nm of torque on tap the R16 can lay down an ultra-wide torque range that accurately reproduces the dynamic steering characteristics of top racing cars from F1 to IndyCar. Feel the road through the steering wheel. Ultra Low Static Torque An optimized motor design that offers practically zero torque ripple and cogging. The R16 can smoothly recreate a wide band of precision steering wheel feedback. From the feeling of hard braking, to the tires riding the curb around a corner. Superior Temperature Control Performance The R16 has excellent temperature performance. Even under the most strenuous endurance race the R16 will not reduce or attenuate torque output due to motor overheating. The temperature control system monitors the motor temperature in real time, to avoid any possible temperature abnormalities. 262,144 Points of Resolution The encoder of the R16 has 262,144 points of resolution. Giving the R16 exceptional ability to understand the position of the wheel to seamlessly reproduce the feeling of racing. Zero Latency Wireless Technology Wirelessly transmit data and power between the steering wheel and the base. Quad Core Architecture No matter how complex the force feedback calculations get. The unique Quad CPUs can reliably process the task at maximum precision. APP Cloud Control The settings of the wheel base, steering wheel, pedals, etc. can be modified through the MOZA APP. Settings can be imported with one click onto new simulators. Specs

• PC
• Direct Drive
• Limitless Maximum Turning Angle
• Aluminum
• Orange+Golden/Black
• 16 Nm Maximum Torque
• 360W Maximum Power
• 262144ppr Encoder Resolution
• 1000Hz USB Refresh Rate
• D1 Spec Quick Release
• Instructions，Power Supply，USB Cable，Warranty Card，Screw
• 4-Hole Pattern on the Bottom, Side Mounting Support with Special BRKT
• Bottom Angle Adjustment Bracket/Side Fixing Bracket
• Table Clamp

Optional

• Side Mounting
• Emergency Stop

L x W x H

• 327mm x 170mm x 130mm
• 8.9kg Mass

• APP Function
• Shifting Indicator Light
